What are the four types of timer switches?

In modern life, timer switches have become an important tool for improving efficiency and saving energy. Whether it's household appliances, industrial equipment, or outdoor lighting, they can automatically turn devices on or off at preset times.

The four main types of timer switches and their characteristics:

Timer switches (also called time switches or timers) on the market can be mainly divided into the following four core types based on their working principles and technical characteristics:

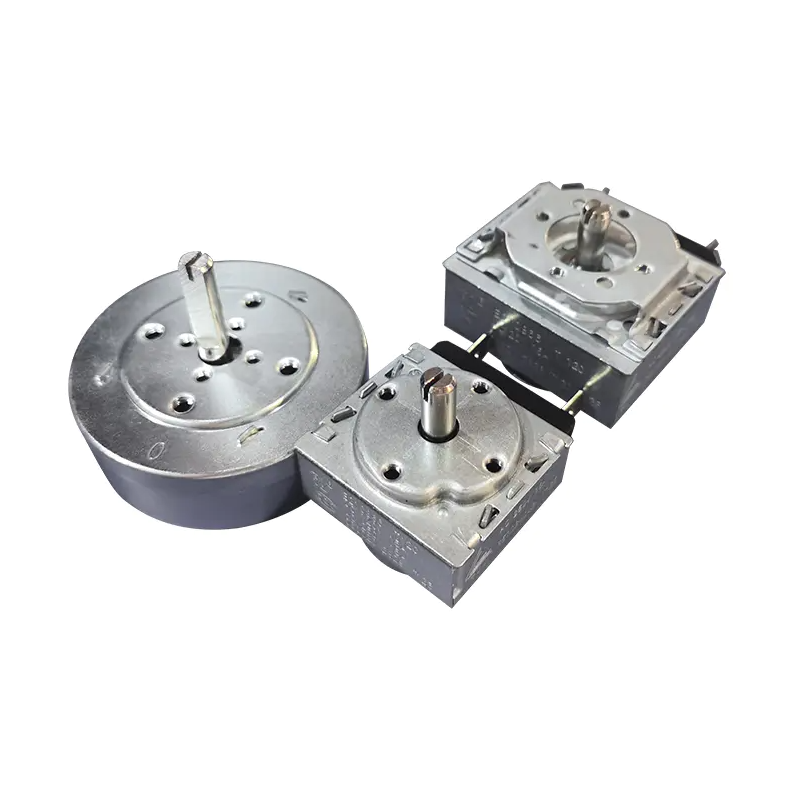

1. Mechanical Timer

The mechanical timer is the most classic and basic type of timer switch.

Working Principle:

It mainly relies on an internal mechanical pendulum or spring mechanism for timing. Users set the time by rotating a dial or pointer to control the circuit's on/off state.

Core Characteristics:

Advantages:

Simple structure, durable, inexpensive, requires no power supply or batteries to maintain timing (but requires an external power source to drive the load). Intuitive operation and relatively quick setup.

Disadvantages:

Relatively low accuracy, coarse setting granularity (usually a minimum interval of 15 or 30 minutes), limited functionality, unsuitable for applications requiring high precision or complex program control.

Suitable Scenarios:

Periodic applications with low time requirements, such as aquarium lighting, outdoor landscape lighting, and simple everyday appliance timers. It is the preferred timer switch for many home users and simple industrial applications.

2. Digital (Electronic) Timer

Digital timer switches are an upgrade from mechanical timers, representing a significant leap in functionality and accuracy.

Working Principle:

Uses electronic chips and crystal oscillator circuits for timing and control. Typically equipped with an LCD screen and buttons, allowing complex timing programs to be input through programming.

Core Features:

Advantages:

High timing accuracy (in seconds), a large number of configurable programs (e.g., dozens), multiple modes including cycle, random, and countdown, and some models also have power-off memory functionality.

Disadvantages:

Slightly higher price, more complex operation and setup than mechanical timers, relies on an internal battery (to keep the clock running) and an external power source (to drive the load).

Suitable Scenarios:

Applications requiring high precision and complex program control, such as advertising light boxes, smart rice cookers, precisely controlled charging equipment, and periodic feeding in animal husbandry.

3. Wi-Fi/Smart Timer Switch

Smart timer switches are a product of the Internet of Things (IoT) era, combining timer functionality with network connectivity.

Working Principle:

Connects to the home network via Wi-Fi or Bluetooth, allowing users to remotely control and set timer programs via a mobile app.

Core Features:

Advantages:

Remote control, integration with smart home systems, voice control support, and automatic adjustment of the timer schedule based on external conditions such as weather and sunrise/sunset times. The most powerful and flexible feature.

Disadvantages:

Relies on a stable network connection, relatively high price, and requires smart devices for setup and use.

Suitable Scenarios:

Smart homes, remote device management, and scenarios requiring integration with an ecosystem, such as smart sockets and air conditioner companions.

4. Cycle/Interval Timer

This type of timer switch focuses on a repetitive "on-off-on-off" cycle.

Working Principle:

Electronic or mechanical circuitry is designed to achieve a precise cyclical operating mode, where working time (T1) and sleep time (T2) alternate.

Key Features:

Advantages:

Focused on repetitive tasks, it allows precise control of the working and stopping intervals, making it particularly suitable for equipment requiring intermittent operation.

Disadvantages:

Limited functionality; unsuitable for complex, multi-segment daily timed tasks.

Applicable Scenarios:

Sprinkler irrigation systems, intermittent operation of industrial equipment, periodic ventilation of exhaust fans, water pump circulation, etc.

How to Choose the Right Timer Switch for Your Needs?

When choosing the most suitable timer switch, you should primarily consider your budget, ease of operation requirements, and requirements for timing accuracy and functional complexity. Based on your priorities, the following suggestions may apply:

1. Prioritizing limited budget, ease of operation, and not demanding high precision: A "mechanical timer" is recommended. Reasons: 1. Mechanical timers: Simple, reliable, and inexpensive. Operation is quick and intuitive, requiring only a dial rotation, making them the most cost-effective choice. Suitable for applications with low time accuracy requirements and simple daily switching.

2. High precision, multiple programs, and wide timing range: Recommended: "Digital (electronic) timer." Reasons: Digital timers offer high timing accuracy (down to the second), can store dozens of timing programs, and support various complex modes such as loops and countdowns. They are ideal timers for precise control of industrial and complex household appliances.

3. Remote control, smart home integration, and condition-based timing: Recommended: "Wi-Fi/Smart timer switch." Reasons: Smart timers offer the most powerful and flexible functions, supporting remote control via mobile app and voice control, and integration with smart home systems. They can even automatically adjust the timing plan based on external conditions (such as sunrise and sunset), providing maximum convenience and flexibility.

4. Intermittent/cyclic operation: Recommended: "Cyclic/Cyclic delay timer." Reason: These timer switches are designed for repetitive, periodic tasks, precisely controlling the alternation of the device's operating time (T1) and sleep time (T2). They are particularly suitable for scenarios requiring periodic operation, such as sprinklers and ventilation systems.

Understanding these four main types of timer switches and their advantages will help you make the choice that best suits your usage scenarios and needs, whether it's a classic and durable mechanical timer, a powerful digital timer, or a flexible and convenient smart device.
